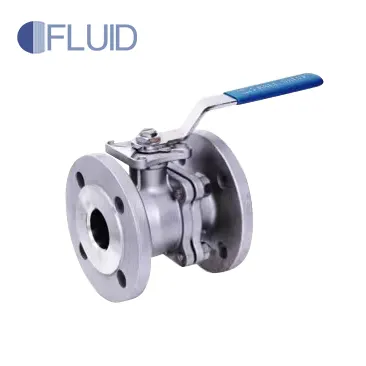

DIN Standard 2PC Ball Valve
  • DIN Standard 2PC Ball ValveDIN Standard 2PC Ball Valve

DIN Standard 2PC Ball Valve

CENTROFLOW DIN Standard 2PC Ball Valve are designed for applications of food and beverage, chemical, pharmacy manufacturing ,water treatment etc. 2PC Ball valves are simple to repair and replace, long lasting, and highly effective. Because of these advantages you will find where there’s pipe, there’s 2 PC ball valve controlling the flow use in these medium. They come in many different configurations and sizes and may be manual, mechanical, pneumatic or electric actuated ball valves. Conclusion — Who Makes Quality 2 PC DIN standard Ball Valves? Find professional manufacturer Centroflow and contact for detail.

Send Inquiry    PDF Download

Product Description

CENTROFLOW DIN Standard 2PC ball valve designed as full bore, is the type of valve that simple to repair and replace, long lasting, and highly effective. makes this 2PCball valve product start from the pattern moulding to casting to CNC machining, each process well controlled and managed to ensure the quality and cost efficiency. Material available SS316 SS304 SS316L SS304L alloy steel with TUV AD2000. BV certificated.

CENTROFLOW DIN Standard 2PC Ball Valve Features

Full bore, 1/2"~10" (DN15~DN250)
W. P.:PN16/40
W. T.:-20℃ ~200℃ (-4℉~392℉)
Investment casting
Blow-out proof stem
Anti-static device (option)
ISO 5211 Mounting pad
Flange dimension: DIN 2501
Face to face: DIN 3202 part1 - F4 / F5

Material and Main Parts

ITEM PART NAME MATERIAL
1 BODY WCB/CF8/CF8M
2 CAP WCB/CF8/CF8M
3 BALL SS304/SS316
4 STEM ASTM A276-316
5 SEAT PTFE/RPTFE
6 SEAL PTFE
7 PACKING PTFE
8 THRUST WASHER PTFE
9 CSNAP RING SS304
10 HANDLE CAST IRON/SS304
11 STUD SS304
12 NUT SS304
13 LOCKING DEVICE SS304
14 GLAND SS304

Dimensions

DN

L

H

H1

H2

W

D1

D2

TORQUE

(Nm)

WEIGHT

(kg)

15

114.5

68

45

33.5

130

42

-

6

2.5

20

124.4

70

48

36

130

42

-

6

3.1

25

126.7

82

53

42

160

42

-

15

4

32

131.2

87

59.5

48

160

42

-

30

5.5

40

141.1

138

96

80.5

200

50

-

30

7.2

50

150.7

147

104.5

89.5

200

70

50

50

11.5

65

170.5

163

125.5

108

328

70

62

80

16.3

80

181.5

173

135.5

117.5

328

102

62

90

21.2

100

190.8

190

151

133.5

328

102

62

120

27.6
