1PC Thin Wafer Ball Valve
  • 1PC Thin Wafer Ball Valve1PC Thin Wafer Ball Valve
  • 1PC Thin Wafer Ball Valve1PC Thin Wafer Ball Valve

1PC Thin Wafer Ball Valve

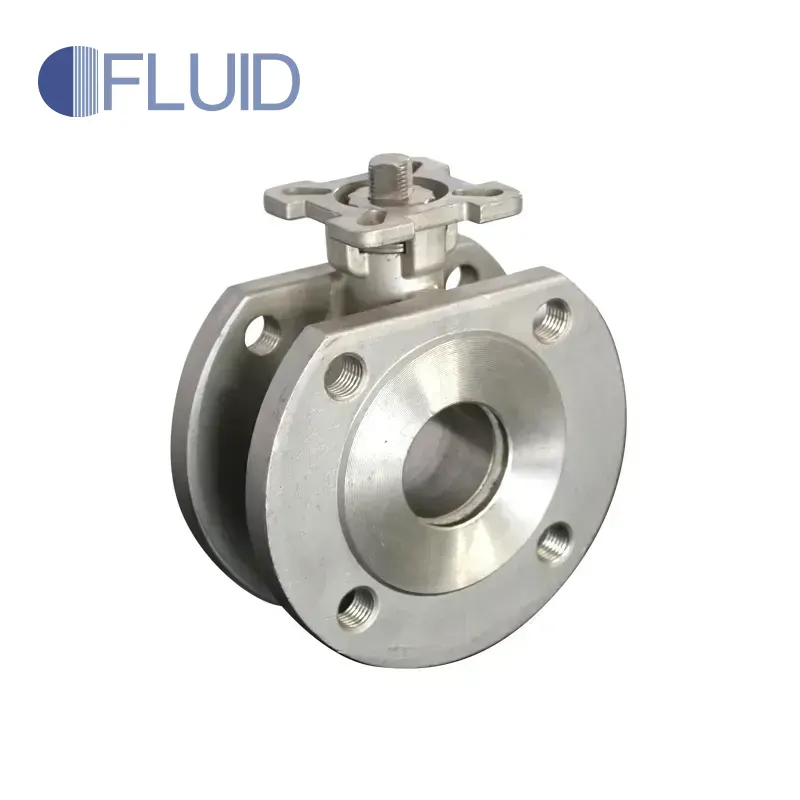

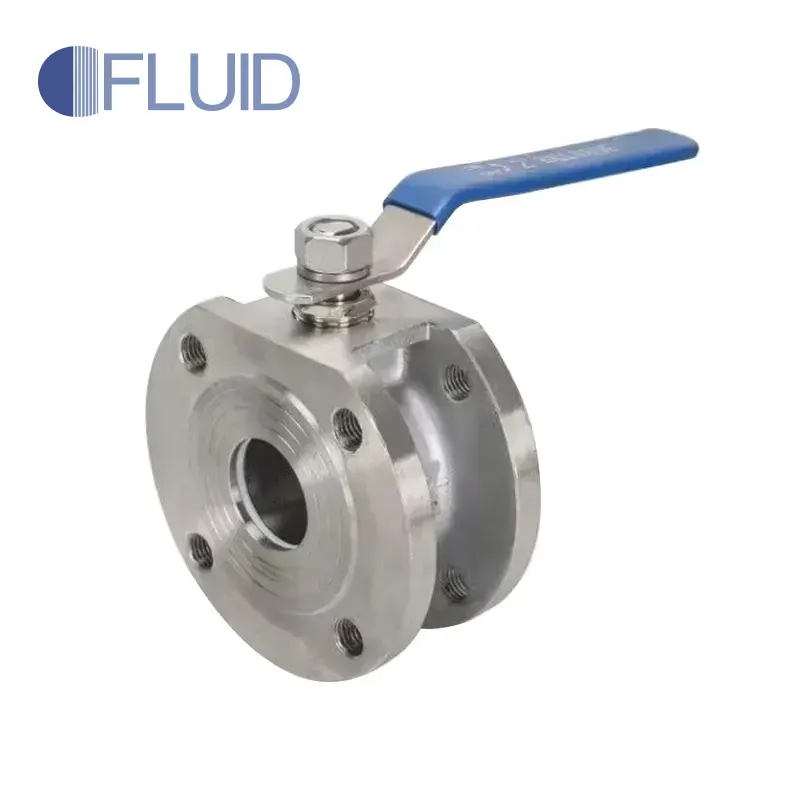

CENTROFLOW Made Flanged Wafer Type Stainless Steel 1PC Thin Wafer Ball Valve is a quarter turn and full bore valves. Compare with ordinary flanged ball valves, the wafer ball valve has the remarkable advantage of short structure length, light weight, convenient installation and material saving. Products are widely applied for flow control system. More detail please just contact us, CentroFlow working team honored to receive your further valuable co-operation.

Send Inquiry    PDF DownLoad

Product Description

CENTROFLOW Maufactured Flange end 1PC Thin Wafer Ball Valve enjoys a good reputation in the market. Material test, whole procces ERP control  and operation standardization makes our products meet most critical requirement. Sizes ranging from ½” to 6” with ASME Class 150/300 flanges. CentroFlow makes this flanged wafer thin ball valve product start from the pattern moulding to casting to CNC machining, each process well controlled and managed to ensure the quality and cost efficiency. Material available SS316 SS304 SS316L SS304L alloy steel with TUV AD2000. BV certificated.

CENTROFLOW 1PC Thin Wafer Ball Valve Features

Size Range: ½” – 6”
CF8M and WCB Bodies/316SS Trim
Fire Safe Design Approved
ISO 5211(option)
Anti-Static Devices for Ball-Stem-Body
Blow-out Proof Stem
Design: ASME B16.34, API 608
Wall Thickness:ASME B16.34 EN12516-3
Flange: ASME B16.5
Inspection and Testing: API 598 EN12266
W.T: -20 Deg C to 120 Degree
W.T: -20 Deg C to 120 Degree

Material and Main Parts

NO.

PART NAME

MATERIAL

1

BODY

SS/SUS304

2

CAP

SS/SUS304

3

SEAT

PTFE

4

BALL

SS304/SS316

5

STEM

SS304/SS316

6

GASKET

PTFE

7

O-RING

VITON

8

PACKING

PTFE

9

GLAND

SS/SUS304

10

STEM NUT

SS/SUS304

11

HANDLE

SS

12

STOP PIN

SS/SUS304

Dimensions

NPS

L

D

H

HI

DI

D2

D3

N-M

T

F

0A

0B

0a

0b

K

W

H2

1/2"

35

14

55

8

45

60.5

88

4-M12

9

2

36

42

6

6

9

112

30

3/4"

38

20

60

8

57

70

98

4-M12

11

2

36

42

6

6

9

112

30

1"

45

24

67

10

6

80

112

4-M12

14

2

42

50

6

7

11

135

35

1 1/4"

50

28

80

10

77

89

127

4-M16

15

2

42

50

6

7

11

135

35

1 1/2"

60

36

85

14

90

100

144

4-M16

18

2

50

70

7

9

14

180

40

2"

70

46

87

14

102

120.5

161

4-M16

20

2

50

70

7

9

14

180

40

2 1/2"

95

56

103

17

125

139.5

188

4-M16

17

2

70

102

9

1

17

280

55

3"

118

71

121

17

140

152.5

197

8-M16

20

2

70

102

9

11

17

280

55

4"

140

91

130

17

160

190.5

218

8-M16

20

2

70

102

9

1

17

280

55

5"

200

108

117

50

188

216

250

8-M16

22

3

-

125

-

14

27

400

-

6"

225

145

130

50

212

241.5

285

8-M20

22

3

-

125

-

14

27

600

-
