1PC Stainless Steel Flanged Ball Valve
  • Air Pro1PC Stainless Steel Flanged Ball Valve

1PC Stainless Steel Flanged Ball Valve

CENTROFLOW 1PC Stainless Steel Flanged Ball Valve designed fully conform to ANSI, DIN, JIS, BS...with a quarter turn and reduced bore, is a valve where the bore size smaller than the internal diameter of pipework. Telling that the opening of the reduced bore is less than full bore ball valves, the smaller opening results in an increase flow which difference from the full bore type. For more detail please just feel free to contact us, CentroFlow working team honored to receive your further inquiries.

Send Inquiry    PDF Download

Product Description

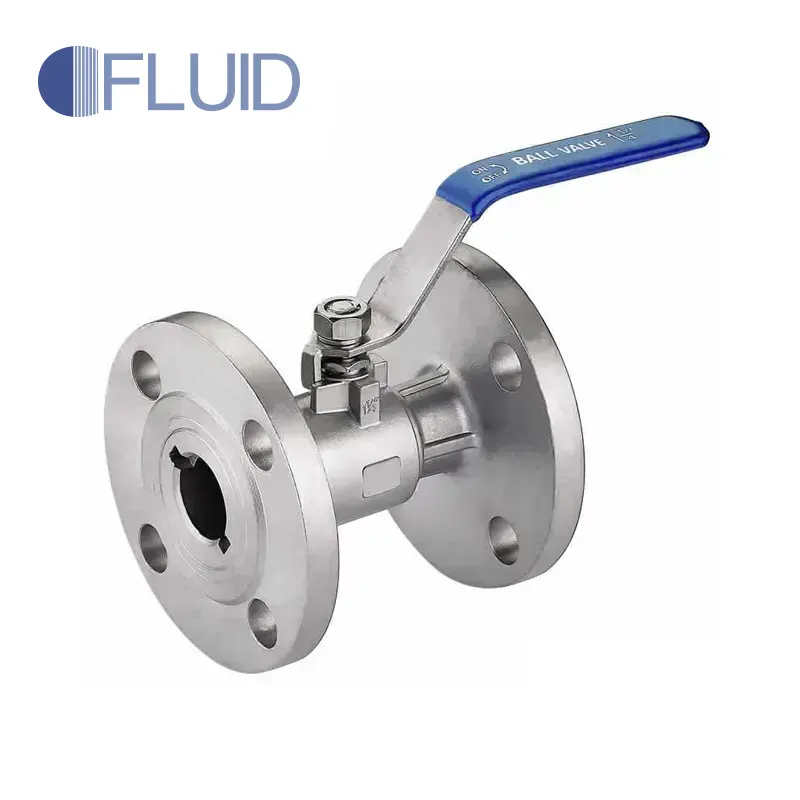

CENTROFLOW 1PC Stainless Steel Flanged Ball Valve is a one piece, reduced port, flanged end ball valve. Sizes ranging from ½” to 6” with ASME Class 150/300 flanges. CentroFlow makes this one piece ball valve product start from the pattern moulding to casting to CNC machining, each process well controlled and managed to ensure the quality and cost efficiency. Material available SS316 SS304 SS316L SS304L alloy steel with TUV AD2000. BV certificated.

CENTROFLOW 1PC Stainless Steel Flanged Ball Valve Features

Size Range: ½” – 6”
CF8M and WCB Bodies/316SS Trim
Fire Safe Design Approved
ISO 5211(option)
Anti-Static Devices for Ball-Stem-Body
Blow-out Proof Stem
Design: ASME B16.34, API 608
Flange: ASME B16.5
Inspection and Testing: API 598
W.T: -20 Deg C to 120 Degree

Material and Main Parts


NO.

PART NAME

MATERIAL

1

BONNET

WCB/CF8/CF8M

2

BODY

WCB/CF8/CF8M

3

BALL

SS304/SS316

4

SEAT

PTFE

5

STEM PACKING

PTFE

6

VHPE PACKING

PTFE

7

JUNK RING

SS304

8

STEM

SS304/SS316

9

STEM NUT

SS304

10

NUT LOOSEN COVER

SS304

11

ELASTIC RING GASKET

SS304

12

Handle Lock

SS304

13

HANDLE

SS304

Dimensions

DN

L

DI

K

D

H

E

C

F

N-do

ISO

5211

Normal

High

Normal

High

Normal

High

Normal

High

Normal

High

Normal

High

15

108

92

35

46

60.5

65

89

95

66

65

145

125

14

2

4-14

F03

F04

20

117

105

43

56

70

75

98

105

69

75

145

135

14

2

4-14

F03

F05

25

127

110

51

65

79.5

85

108

115

91

87

166

135

15

2

4-14

F04

F05

32

140

125

64

76

89

100

117

140

97

90

166

147

16

3

4-18

F04

F07

40

165

135

73

85

98.5

110

127

150

123

95

206

180

18

3

4-18

F05

F07

50

178

155

92

100

120.5

125

152

165

130

110

206

180

18

3

4-18

F05

F07

65

190

170

105

118

139.5

145

178

185

143

120

240

200

21

3

4-18

F07

F10

80

203

200

127

132

152.5

160

190

200

176

130

240

200

24

3

8-18

F07

F10

100

229

230

157

156

190.5

190

229

235

192

150

240

240

24

3

8-18

F10L

F10
