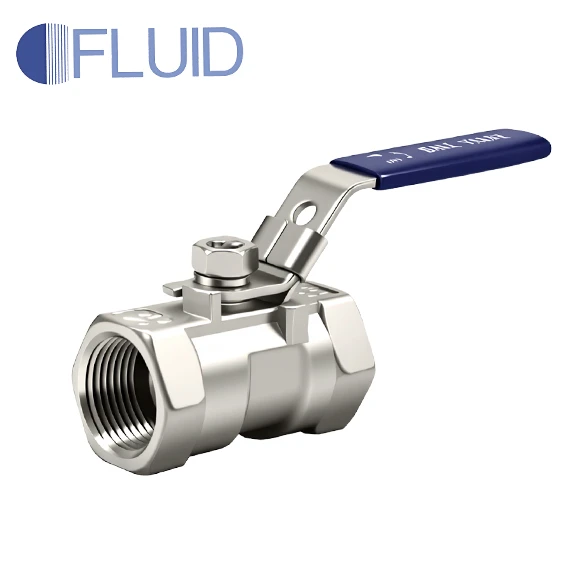

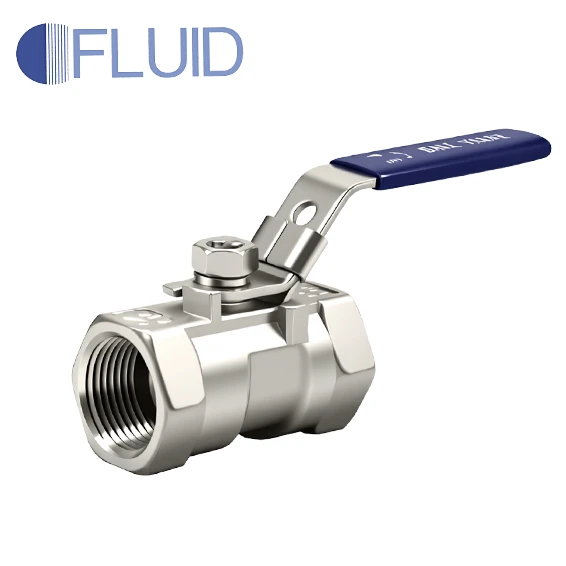

1PC Female Threaded Ball Valve

CENTRO has been known as a top quality 1PC Female threaded ball valve ISO certificated manufacturer in China. Our professional management team will bring you one qualified experience during co-operation. Rely on our own chain industry valve casting products, CENTRO valve can be expected to sell at a economic price.

Send Inquiry    PDF Download

Product Description

1PC Female threaded ball valve designed with a quarter turn, when turn the handle to 90°, either clockwise or counter clockwise to carry out the opening or closing functions by lever device. It is known as a reduced bore type which difference from the full bore type. a reduced bore type ball valve is a valve where the bore size is smaller than the internal diameter of pipework where it installed on. Material available SS316 SS316L SS304 SS304L WCB.

CENTRO 1PC Female Threaded Ball Valve Features

• 1PC Body Design
• Reduced Bore, Quarter Turn Operation
• Sizes: 1/8” – 2” (DN6 – DN50)
• Working Pressure: 1000 WOG
• Threaded End: BSPP, NPT
• Applicable Medium: General Oil, Gas & Water Applications
• Blow-out Proof Stem Design
• Temperature: -20 Degree C to 120 Degree C

Material and Main Parts

NO

Part Name

Material

1

Body

WCB/CF8M/CF8

2

Ball

SS316/SS304

3

Bonnet

WCB/CF8M/CF8

4

Valve Cover Gasket

SS304

5

Seat

PTFE

6

Seat

SS304/SS316

7

Thrust Washer

PTFE

8

Stem Packing

PTFE

9

Junk Ring

SS304

10

Handle

SS304

11

Spring Wash

SS304

12

Handle Nut

SS304

13

Handle Lock

SS304

Dimensions

DN

L

D

H

E

6

40

5

28

70

10

45

7

30

78

15

58

9

35

95

20

61

12

39

95

25

70

15

47

110

32

79

20

48

130

40

85

25

54

145

50

100

32

60

145
