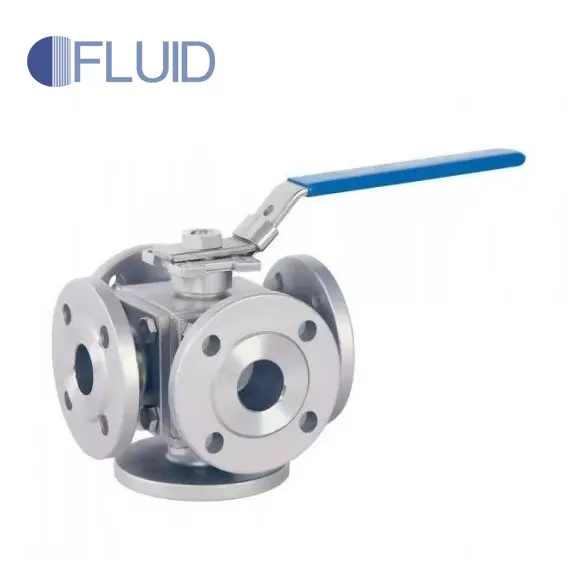

Multi-Way High Platform Ball Valve

Overview of CENTROFLOW made Multi-Way High Platform Ball Valve Four-Way Ball Valve only needs to operate the wrench or actuator to turn the ball 90 degrees, and can switch the flow direction of two media at the same time, which is convenient and fast, and reach the effect of one valve with multiple functions. -9- 2-1994; ASME/ANSI B165.

Send Inquiry    PDF DownLoad

Product Description

CENTROFLOW Maufactured Multi-Way High Platform Ball Valve  Four-Way Ball Valve designed with versatile and easy to disassemble, the stem integrally forged and modulated with A182F (1Cr13), and the hardness reaches HB220~250, anti-blowout structure. The valve stem is connected with the handle through a flat key, spline or square. Below DN150 is the floating ball form, Above DN200 is the fixed ball form.  An auxiliary sealing structure can be set at the valve seat of the ball valve, and a grease injection valve can be installed at the valve seat and valve stem, which can be temporarily sealed in an emergency

CENTROFLOW Multi-Way High Platform Ball Valve Features

Size Range: ½” – 4”
CF8M and WCB Bodies/316SS Trim
Fire Safe Design Approved
ISO 5211(option)
Anti-Static Devices for Ball-Stem-Body
Blow-out Proof Stem
Face to Face: F1(DN15-50) ,F5(DN65-100)
Wall Thickness:ASME B16.34 EN12516-3
Flange: DIN2543
Inspection and Testing: API 598 EN12266
W.T: -20 Deg C to 120 Degree

Material and Main Parts

NO.

PART NAME

MATERIAL

1

BONNET

CF8/CF8M

2

BODY

WCB/CF8/CF8M

3

BALL

SS304/SS316

4

SEAT

PTFE

5

STEM PACKING

PTFE

6

VHPE PACKING

PTFE

7

JUNK RING

SS304

8

STEM

SS304/SS316

9

STEM NUT

SS304

10

NUT LOOSEN COVER

SS304

11

ELASTIC RING GASKET

SS304

12

Handle lock

SS304

13

HANDLE

SS304

Parameter (Specification)
