Ductile Iron Ball Valve
  • Ductile Iron Ball ValveDuctile Iron Ball Valve

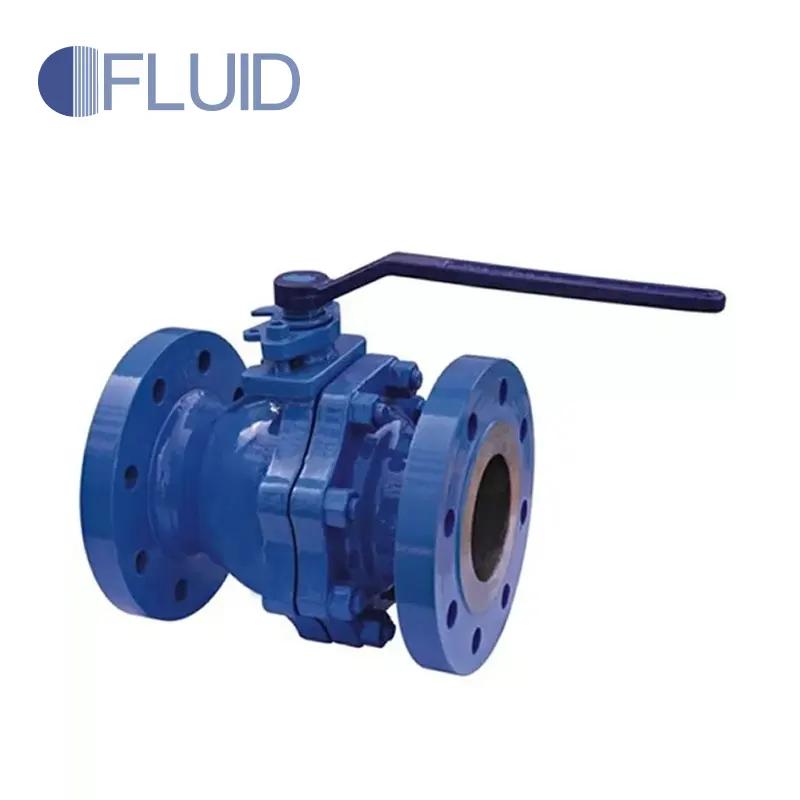

Ductile Iron Ball Valve

CENTROFLOW Ductile Iron Ball Valve is made specially for water treatment, steam industry use. We sell at low cost with high quality, customized solutions and 2 years guarantee. CentroFlow take care of customers’ concerning :quality control, on time delivery and small order or sample order acceptable capabillity. For more details, contact CentroFlow’s working team, we are pleased to serve you all clock round.

Send Inquiry    PDF DownLoad

Product Description

Ductile Iron Ball Valve made by CENTROFLOW is of a floating ball valve with seats supported ball, that is pushed by upstream pressure towards the downstream seat to ensure sealing. The dimension of the floating ball valves range is limited by the capability of the seats material to support the pressure, temperature and weight. CENTROFLOW manufactured ductile iron ball valve mostly designed to apply for water treatment industry with Flanged PN16, Ductile Iron Body, Stainless Steel Ball & Stem, RPTFE Seats, Viton O-rings.  The top flange of the valve can be adapt to manual , worm gear , pneumatic and electric actuators.  of valve that easy to install, replace, and maintenance. CentroFlow’s experienced and skilled workers make the products more quality and remarkable. Product conform to API DIN JIS BS standard. Besides customized specification are also welcome.

CENTRO Ductile Iron Ball Valve Features

●Full port, 1/2"~6" (DN15~DN150)
● Body W.P. : P16
●Flange End W.P. : PN10/16
●W.T. : -10°C~150°C
●Flange dimension: DIN 2501 - PN40
●ISO5211 Mounting Pad
●Face to face: DIN 3202 - F4

Material and Main Parts

NO

Part Name

Material

1



 Exopy Coated Ductile Iron

2

Flange

 Exopy Coated Ductile Iron

3

Ball

AISI 304 Stainless Steel

4

Ball Seat

RPTFE

5

Stem

AISI 304 Stainless Steel

6

Sliding Washer

PTFE

7

Ring

PTFE

8

O-Ring

VTON

9

Lever

Ductile Iron

10

Stop Plate

Galvanized Carbon Steel

11

Spring Washer

Galvanized Carbon Steel

Parameter (Specification)

DN

P

A

H

H1

B

C

ISO

J

n°xØq

E

S

Nm*

Kv

Kg

½”

15

115

84

50.5

160

95

F04

42

4x6

11.5

9

15

22.3

2.6

¾”

20

120

84

52

160

105

F04

42

4x6

11.5

9

15

47.7

3.3

1”

25

125

96

59

170

115

F04

42

4x6

14.5

11

18

83.5

4.2

1¼”

32

130

101

64

170

140

F04

42

4x6

14.5

11

18

150.4

5.8

1½”

40

140

125

78.5

230

150

F05

50

4x7

17.5

14

18

255

7.5

2”

50

150

135

87

230

165

F05

50

4x7

17.5

14

20

435

9

2½”

63

170

143

95

230

185

F05

50

4x7

17.5

14

40

672

10.5

3”

76

180

165

118

280

200

F07

70

4x9

20

17

70

947

15.5

4”

95

190

180

132.5

360

220

F07

70

4x9

20

17

100

1508

18.5

5”

120

200

225

165

450

250

F10

102

4x11

24.5

22

180

2633

28

6”

145

210

243

182.5

560

285

F10

102

4x11

24.5

22

250

4261

38.5
