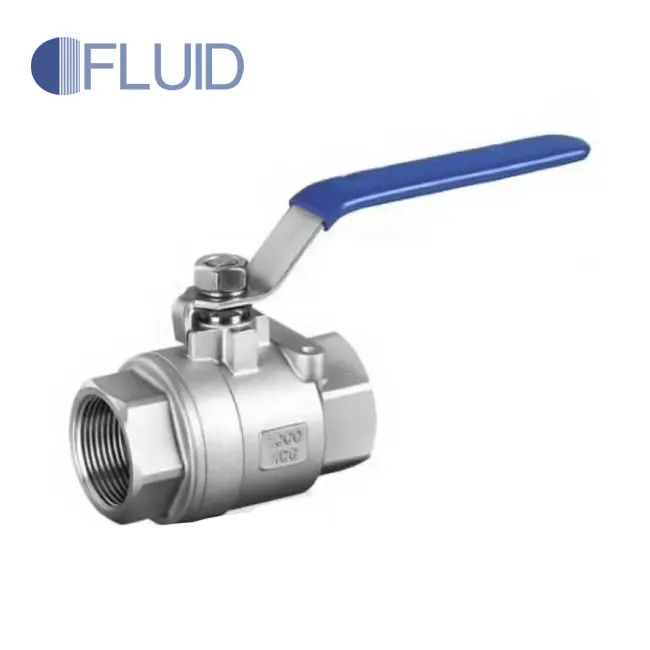

Centro 2PC Full Port Screwed Ball Valve known as its body consisted of two pieces, is of quarter turn that controls the flow through the ball. Centro two pieces threaded ball valve is the most selling products among all since its easy operation, maintenance and durability.
2PC Full Port Screwed Ball Valve is made of investment casting, is one of valve that easy and quick installation and operation., with CE PED certificated. Material available: SS316 SS304 SS304L 33316L, WCB. Centro this ball valve can meet your satisfaction whatever you are wholesaler or end user.
Industry applications for Chemical, food & beverage
Suitable Mediums: WOG (Water, Oil and Gas products etc)
PC Body Design
• Full Bore, Quarter Turn Operation
• Sizes: 1/8” – 3” (DN8 – DN80)
• Working Pressure: 1000 WOG
• Threaded End: BSPP, NPT
• Applicable Medium: General Oil, Gas & Water Applications
• Blow-out Proof Stem Design
• Temperature: -20 Degree C to 120 Degree C
|
NO |
Part Name |
Material |
|---|---|---|
|
1 |
Body |
WCB/CF8M/CF8 |
|
2 |
Ball |
SS316/SS304 |
|
3 |
Bonnet |
WCB/CF8M/CF8 |
|
4 |
Valve Cover Gasket |
SS304 |
|
5 |
Seat |
PTFE |
|
6 |
Seat |
SS304/SS316 |
|
7 |
Thrust Washer |
PTFE |
|
8 |
Stem Packing |
PTFE |
|
9 |
Junk Ring |
SS304 |
|
10 |
Handle |
SS304 |
|
11 |
Spring Wash |
SS304 |
|
12 |
Handle Nut |
SS304 |
|
13 |
Handle Lock |
SS304 |
|
DN |
L |
D |
H |
E |
|---|---|---|---|---|
|
6 |
54 |
12 |
49 |
100 |
|
10 |
54 |
12 |
49 |
100 |
|
15 |
58 |
15 |
53 |
105 |
|
20 |
69 |
20 |
58 |
118 |
|
25 |
79 |
25 |
73 |
128 |
|
32 |
97 |
32 |
77 |
137 |
|
40 |
102 |
38 |
86 |
169 |
|
50 |
116 |
48 |
96 |
169 |
|
65 |
159 |
64 |
113 |
215 |
|
80 |
171 |
78 |
145 |
237 |
