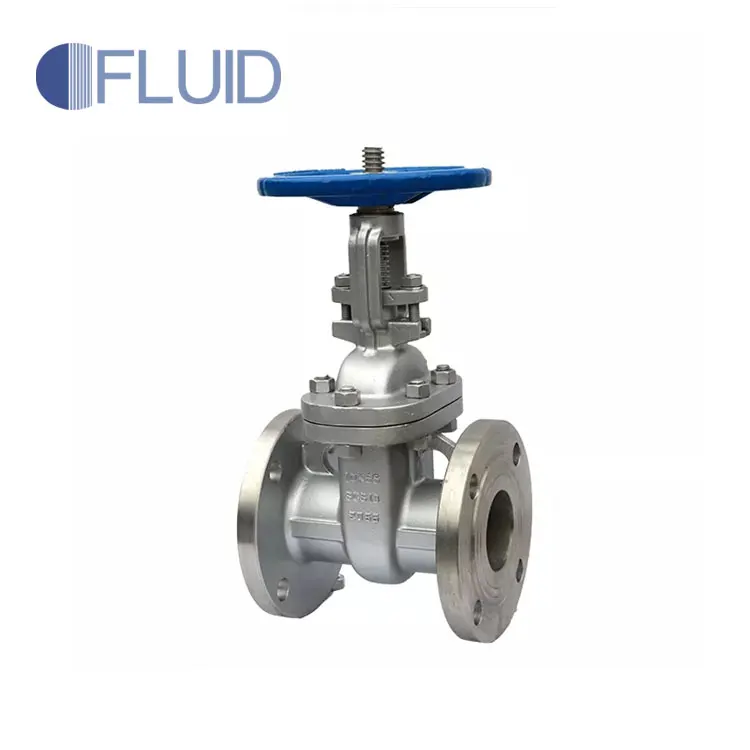

JIS 10K 20K Gate Valve

Overview of CENTROFLOW made JIS 10K 20K Gate Valve ,is a casting full bore valve with flexible wedge and external screw suitable for regulation manufactured according to JIS standard.Only needs to operate the wrench or actuator to turn the ball 90 degrees, and can switch the flow direction of two media at the same time, which is convenient and fast, and reach the effect of one valve with multiple functions.

Send Inquiry    PDF DownLoad

Product Description

CENTROFLOW Maufactured JIS 10K 20K Gate Valve designed with
1. Stem: cast steel, single-part construction, ASME screw
2. Body and bonnet: high quality and precision tooled casting steel.
3. Bore: Full port that ensure minimum turbulence and minimum flow resistance
4. Backseat: screwed into bonnet
5. Flexible wedge

CENTRO JIS 10K 20K Gate Valve Features

Size: from 2” to 48”
Pressure: 10K 20K
Design: KS B 2361
Face to Face Design:KS B 2361
Connections: KSB1511
Test standard: KSB2304.
Actuation:lever, gear box, pneumatic or electric actuator+ handwheel
Medium: water, steam, oil
WT: from -46ºC or -220ºC(Up to material)

Material and Main Parts

1 BODY SCPH2
2 DISC SCPH2
3 STEM SUS420
4 BONNET GASKET STEEL+FLEXIBLE GRAPHITE
5 BONNET SCPH2
6 PACKING FLEXIBLE GRAPHITE
7 PACKING GLAND SCPH2
8 STEM NUT BRASS(ZCuAI10Fe3)
9 HANDWHEEL DUCTILE IRON
10 BEARING COVER S35C
11 BOLT S45C
12 STUDBOLT S45C
13 NUT S35C

Dimensions

SIZE

DN

L

D

D

a

B-f

Nx0d

θ

H

H1

DN50

50

178±2

155

120

θ96

16-2

4xθ19

200

320

381

DN65

65

190±2

175

140

116

18-2

4xθ19

200

346

425

DN80

80

203±2

185

150

126

18-2

8xθ19

240

395

489

DN100

100

229±2

210

175

151

18-2

8xθ19

280

436

547

DN12

125

254±2

250

210

182

20-2

8xθ23

320

510

650

DN150

150

267±2

280

240

212

22-2

8xθ23

320

570

730

DN200

190

292±2

330

290

262

22-2

12xθ23

360

710

920

DN250

236

330±3

400

355

324

24-2

12xθ25

400

884

1147

DN300

285

356±3

445

400

368

24-3

16xθ25

450

1023

1334
