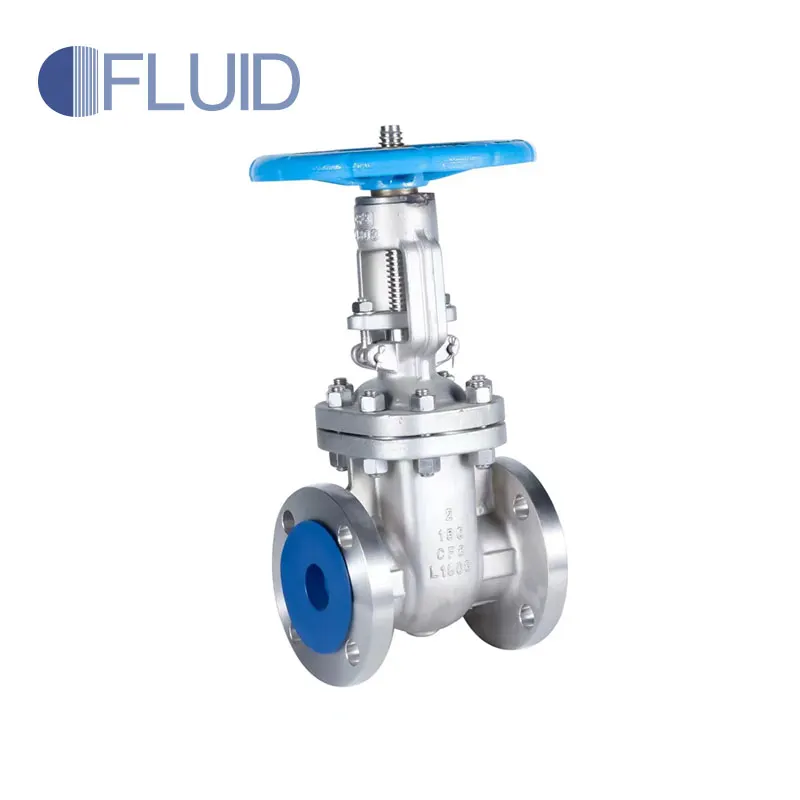

CENTROFLOW supplies API 600 Standard Gate Valve is for petroleum and natural gas industries, specifically where “corrosion, aggressive media, and other service conditions that request for full port openings, heavy wall sections, and extra large stem diameter. It can be distinguished as two basic types:Parallel and wedge-shaped, which widely applied for underground or above ground and used as a isolating valve. CentroFlow mainly produces wedge-shaped one. More information of this API 600 standard gate valve, please just contact us without .delay.
API 600 Standard Gate Valve Manufactured by CENTROFLOW has been enjoyed a good reputation in the market. Using universal trim of 13%Cr, face to face according to ANSI B16.10, pressure - temperature ratings according to ASME B16.34. The stem of Centro Flow gate is thoroughly forged, its T-shape connecbng end is of good stiffness and strength to ensure its safe use and reliability. The stem transmission bearing structure applies sophisticated ACME trapezoidal thread to enable its up and down travel.
shell wall thickness according to API 600, testing according to API 598
Material available SS316 SS304, CE and BV certificated.
Design and manufacture: API 600
Face-to-Face dimension: ASME B16.10(smaller than 36”)
Above 40” upto manufacturer’s standard
Flanged End: ASME B16.5(smaller than 24”)
26'and larger to ASME B 16.47 series A
B.W. End: ASME B16.25
Shell Wall Thickness: API 600(smaller than 24”)
larger to manufacturer^ standard
Smaller than 2 1/2 " have a one-piece bonnet and yoke design
Above 3” have a split bonnet and yoke design.
|
NO. |
PART NAME |
MATERIAL |
|---|---|---|
|
1 |
BODY |
ASTM A351 CF8 |
|
2 |
SEAT RING |
ASTM A351 CF8+STL |
|
3 |
WEDGE |
ASTM A351 CF8+STL |
|
4 |
STEM |
ASTM A182 F304 |
|
5 |
GASKET |
SS304 JACKETEDGRAPHIT |
|
6 |
STUD |
SS304/SS316 |
|
7 |
NW |
ASTM A193 B |
|
8 |
BONNET |
ASTM A194 8 |
|
9 |
BACK SEAT |
ASTM A351 CF8 |
|
10 |
PACKING |
GRAPHIT |
|
11 |
PIN |
SS |
|
12 |
GLAND |
ASTM A193 B8 |
|
13 |
GLAND NUT |
ASTM A194 8 |
|
14 |
BUSHING |
ASTM A351 CF8 |
|
15 |
GLAND |
ASTM A351 CF8 |
|
16 |
STEM NUT |
Aluminum Bronze |
|
17 |
RETAINING NUT |
C.S. |
|
18 |
HANDWHEEL |
Malleable Iron |
|
size |
In. mm |
1-1/2 40 |
2 50 |
2-1/2 65 |
3 80 |
4 100 |
5 125 |
6 150 |
8 200 |
10 250 |
12 300 |
14 350 |
16 400 |
18 450 |
20 500 |
24 600 |
28 700 |
30 750 |
32 800 |
36 900 |
40 1000 |
42 1050 |
48 1200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
in. |
6.5 |
7 |
75 |
8 |
9 |
10 |
105 |
11.5 |
13 |
14 |
15 |
16 |
17 |
18 |
20 |
24 |
24 |
26 |
28 |
33 |
31 |
34 |
|
(RF) |
mm |
165 |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
381 |
406 |
432 |
457 |
508 |
610 |
610 |
660 |
711 |
762 |
787 |
864 |
|
L1 |
in. |
6.5 |
8.5 |
9.5 |
11.13 |
12 |
15 |
15.88 |
16.5 |
18 |
19.75 |
22.5 |
24 |
26 |
28 |
32 |
36 |
36 |
38 |
40 |
42 |
43 |
46 |
|
(BW) |
mm |
165 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
572 |
610 |
603 |
711 |
813 |
914 |
914 |
965 |
1016 |
1067 |
1092 |
1168 |
|
L2 |
in. |
7.0 |
75 |
8 |
85 |
9-5 |
10.5 |
11 |
12 |
13.5 |
14.5 |
15.5 |
16.5 |
17.5 |
18.5 |
20.5 |
24.5 |
24.5 |
26.5 |
28.5 |
- |
- |
- |
|
(RTJ) |
mm |
178 |
191 |
203 |
216 |
242 |
267 |
279 |
305 |
343 |
368 |
394 |
419 |
445 |
470 |
521 |
622 |
622 |
673 |
724 |
- |
- |
- |
|
H |
in. |
15.7 |
16.13 |
18.56 |
20.94 |
24.13 |
27.94 |
31.75 |
39 |
46.69 |
65.31 |
63.56 |
71.31 |
78.19 |
87 |
10625 |
119.31 |
13056 |
13725 |
WS6 |
183.86 |
193.75 |
2175 |
|
open |
mm |
392 |
4C© |
472 |
532 |
612 |
710 |
806 |
990 |
1186 |
1405 |
1615 |
1811 |
1986 |
2210 |
2698 |
3030 |
3317 |
3487 |
3825 |
4670 |
4920 |
5525 |
|
|
in. |
7.86 |
7.86 |
7.86 |
9.86 |
9.86 |
11.81 |
11.81 |
13.75 |
17.69 |
19.69 |
18.13 |
18.13 |
18.13 |
24 |
24 |
24 |
24 |
24 |
33 |
33 |
30 |
33 |
|
|
mm |
200 |
2C0 |
2C0 |
250 |
250 |
300 |
300 |
350 |
450 |
500 |
460 |
403 |
463 |
610 |
610 |
610 |
610 |
610 |
703 |
760 |
760 |
760 |
|
WT |
|
185 |
20 |
30 |
36 |
53 |
71 |
85 |
136 |
220 |
323 |
387 |
553 |
603 |
810 |
1250 |
1931 |
2380 |
2490 |
3OX) |
4815 |
5330 |
7110 |
|
(kg) |
RF BW |
15.5 |
17 |
26 |
29 |
46 |
66 |
77 |
116 |
202 |
294 |
350 |
506 |
575 |
720 |
1133 |
1765 |
2028 |
2280 |
3080 |
4840 |
5275 |
7050 |
