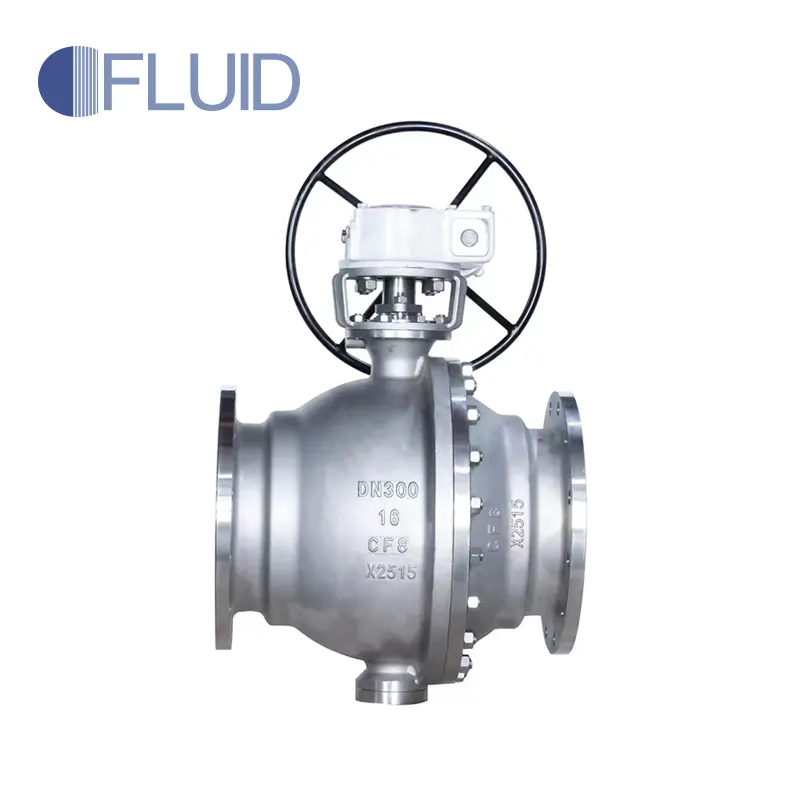

Trunnion Mounted Ball Valve
  • Trunnion Mounted Ball ValveTrunnion Mounted Ball Valve

Trunnion Mounted Ball Valve

Trunnion Mounted Ball Valve made by Centro Flow is a very common type one among ball valves, the structure of trunnion ball valve is opposit to a floating one with ball fix installed to the stem on one end, and the other end ball connected to trunnion. This Centro Flow Trunnion ball valve made strictly comform to the Global standard and customized specifications. And products fully controlled under management ISO 9001 and standard API. For more information please don’t hesitate to contact us imm.

Send Inquiry    PDF DownLoad

Product Description

Construction of Centro Flow Trunnion Ball Valve is of a heavy duty 2-piece bolted body structure, designed to meet or exceed the requirements of most demanding applications. Its a floating seat ring, self-relieving seat design. The seat are contained in metal carries with spring loaded against ball, while the two independent floating seat rings assures bi-directional tightness of the valve from zero differential pressure to the maximum rated pressure. When valve be in a closed position, media will be trapped in the body cavity, unless this media is drained, it will be subject to thermal expansion and contraction. During the temperature rises, the trapped media desires to expand and the pressure increases in the body cavity. In order to avoid excessive pressure built-up, the Centro Flow valve seats are designed to self-relieve, allowing the media in the body to escape into the pipeline.


CENTRO Trunnion Mounted Ball Valve Features:

Connections: ISO 5211 top connection
Double seat of O-rings and fire safe design
Body Type Flanged (RF, RTJ), Buttweld
Body CS, SS, Duplex SS
Ball CS + ENP, CF8M, CF3M, Duplex SS
Stem 410 SS, 316 SS, 304 SS, XM-19, Duplex SS
Seat RTFE, PEEK, Devlon, Nylon, Viton
Seat Seal HNBR, FKM
Size Range
Series 7 - 2" to 14“ (DN 50 to 350)
Pressure Rating
Class 150 -300 Full and Reduced Bores
Design Standard
API 6D, ASME B16.34

Testing Standard
API 6D, API 598, ISO 5208

Material and Main Parts

PARTS

MATERIAL

BODY

ASTM A351-CF8M 1.4408

ASTM A216-WCB 1.0619

CAP

Body Type

Flanged (RF, RTJ), Buttweld

Body

CS, SS, Duplex SS

Ball

 CS + ENP, CF8M, CF3M, Duplex SS

Stem

410 SS, 316 SS, 304 SS, XM-19, Duplex SS

Seat

RTFE, PEEK, Devlon, Nylon, Viton

Seat Seal

HNBR, FKM

Size Range

2" to10“ (DN 50-DN350)

Pressure Rating

Class 150 - 1500 Full and Reduced Bores

Design Standard

API 6D, ASME B16.34

Testing Standard

API 6D, API 598, ISO 5208
