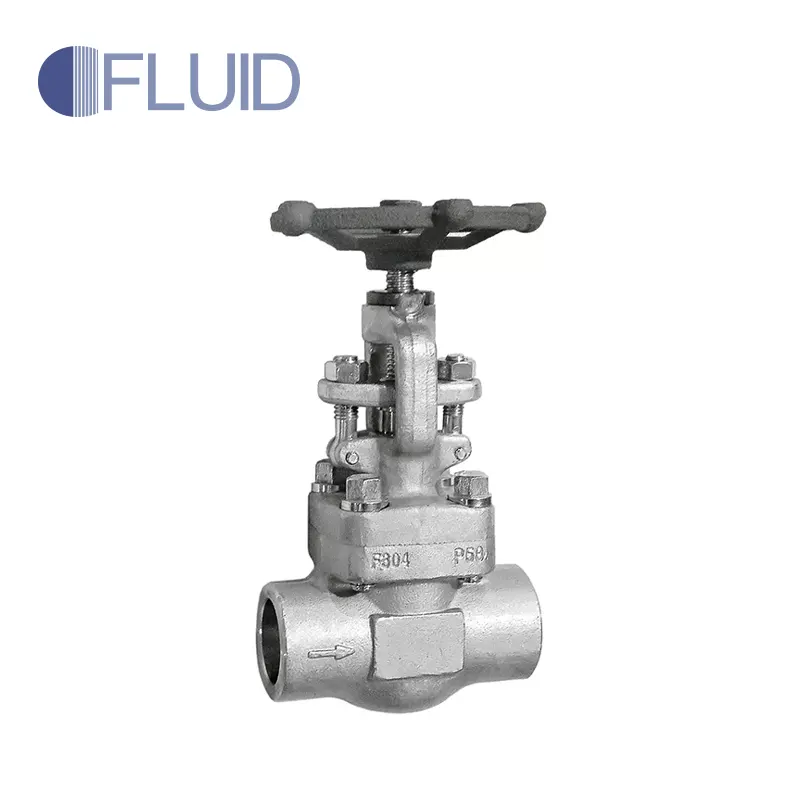

CENTROFLOW supplied Forged Steel Socket Welded Globe Valve is designed & manufactured according to relative BS, ISO, API standards. It is a linear-motion valve characterized by a body with longer face-to-face that accommodates follow passage sufficiently long enough to ensure smooth flow through the valve without any sharp turns. CENTROFLOW ‘s forged socket welded globe valves can be used in both on-off and throttling applications， ideally suitable for water, air, steam, oil and gas services. For more details of this CentroFlow standard Forged Steel Globe valve, please just contact us without delay.
CENTROFLOW supplies Forged Steel Socket Welded Globe Valve is available 1/2~2 in(DN 15 to DN 50), 316L Stainless Steel NPT Rising Stem. End to end connection in according to ANSI B16.5 . Made of casting steel ASTM F316. The maximum working pressure is 2500lb with temperatures of up to 425ºC. Stellite hardened stainless steel seat. Bolt-on bonnet. Indicated for conducting and strangling the passage of aqueous media, oil and gas. testing according to API 598. Futther material available: carbon steel, high-temperature alloy steel, stainless steel, low temperature steel, and special alloys etc, with CE and BV certificate.
• Socket Welded
• Reduced Port
• ASTM A182/316L
• ASME B16.11
• Maximum Pressure 1800 PSI
• Maximum Temperature 850
• Bolted Bonnet
• API 602 / BS5352
• NACE MR0175
• Sizes 1/2” -2”
|
No |
Parts |
Materials |
Materials |
|---|---|---|---|
|
1 |
Body+Seat |
A105 |
A182 F316L+STL |
|
2 |
Disc |
A276 420 |
A182 F316L |
|
3 |
Stem |
A182 F6a |
A182 F316L |
|
4 |
Gasket |
SS Flexible Graphite |
SS Flexible Graphite |
|
5 |
Bonnet |
A105 |
A182 F316L |
|
6 |
Bonnet Nut |
ASTM A194 2H |
|
|
7 |
Bolt |
ASTM A193 B7 |
A182 F316L B8M |
|
8 |
Packing |
Graphite |
Graphite |
|
9 |
Pin |
SS |
A182 F304 |
|
10 |
Gland |
A276 410 |
A182 F316L |
|
11 |
Gland Flange |
ASTM A194 2H |
A182 F316L B8M |
|
12 |
Gland Nut |
ASTM A193 B7 |
A182 F316L B8M |
|
13 |
Gland Bolt |
ASTM A193 B7 |
A182 F316L B8M |
|
14 |
Yoke Sleeve |
A276 410 |
A182 F316L |
|
15 |
Lock Nut |
CS |
CS |
|
16 |
Handwheel |
ASTM A197 |
ASTM A197 |
|
SIZE-NPT |
L |
D |
d |
s |
CV |
|---|---|---|---|---|---|
|
1/4” |
3.11 |
0.56 |
0.24 |
0.38 |
1.2 |
|
1/2” |
3.11 |
0.69 |
0.32 |
0.38 |
2.4 |
|
3/4” |
3.11 |
0.86 |
0.39 |
0.38 |
3.7 |
|
1” |
3.62 |
1.07 |
0.51 |
0.50 |
6.8 |
|
1 1/4” |
4.37 |
1.33 |
0.69 |
0.50 |
11 |
|
1 1/2” |
4.73 |
1.68 |
0.91 |
0.50 |
20 |
|
1 3/4” |
4.73 |
1.92 |
1.10 |
0.50 |
28 |
|
2” |
5.52 |
2.41 |
1.38 |
0.63 |
48 |
