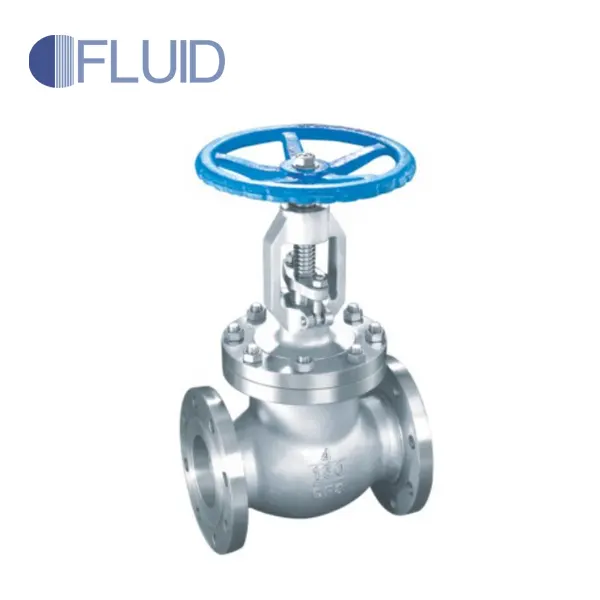

CENTROFLOW supply a reliable and high quality Flanged Globe Valve ANSI for your various applications, such as oil, gas, petrochemical, steam, water and food beverage etc. CENTROFLOW ‘s cast steel flanged globe valves can be used in both on-off and throttling applications. For more details please just contact us without delay.
CENTROFLOW made Casting Steel flanged Globe Valve ANSI is available 1/2~2 in(DN 15 to DN 400), 316L Stainless Steel Rising Stem. End to end connection in according to ASME B16.5(RF) and ASME B16.25(BW)) . Made of casting steel ASTM F316. Class 150lb 300lb 600lb 900lb up to requirements. temperatures of up to 425ºC. Stellite hardened stainless steel seat. Bolt-on bonnet. Indicated for conducting and strangling the passage of aqueous media, oil and gas. testing according to API 598. Further material available: carbon steel, high-temperature alloy steel, stainless steel, low temperature steel, and special alloys etc, with CE and BV certificate.
• Design: API 6D BS1873
• Face to Face: ASME B16.10
• Flange End: Asme B 16.5
• BW End: ASME B 16.25
• Thickness: API 6D BS 1873
• WP :300LB
• Testing Standard: API598
|
No |
Parts Name |
Material |
|---|---|---|
|
1 |
Body |
ASTM A351 CF8M |
|
2 |
Seat Ring |
ASTM A351 CF8M+STL |
|
3 |
Disc |
ASTM A351 CF8M |
|
4 |
Stem |
ASTM A182 F304 |
|
5 |
Gasket |
SS304 Jacketed Graphite |
|
6 |
Bonnet |
ASTM A351 CF8M |
|
7 |
Stud |
ASTM A193 B8 |
|
8 |
Nut |
ASTM A194 8 |
|
9 |
Backseat |
SS304 |
|
10 |
Packing |
Graphite |
|
11 |
Gland Bolt |
ASTM A193 B8 |
|
12 |
Gland Nut |
ASTM A194 8 |
|
13 |
Pin |
SS |
|
14 |
Bushing |
ASTM A351 CF8M |
|
15 |
Gland |
ASTM A351 CF8M |
|
16 |
Stem Nut |
Aluminum Bronze |
|
17 |
Screw |
SS |
|
18 |
Handwheel |
Malleable Iron |
|
19 |
Washer |
C.S. |
|
20 |
Nut |
C.S. |
|
21 |
Disc Cover |
ASTM A276 410 |
|
22 |
Washer |
SS |
|
Size(mm) |
DN40 |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
DN350 |
DN400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L-L1(RF-BW) |
165 |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
787 |
914 |
|
L2(RTJ) |
178 |
216 |
229 |
254 |
305 |
368 |
419 |
508 |
635 |
711 |
800 |
927 |
|
H(OPEN) |
326 |
373 |
390 |
462 |
515 |
538 |
567 |
626 |
712 |
990 |
1295 |
1619 |
|
D |
200 |
200 |
250 |
250 |
300 |
300 |
350 |
400 |
450 |
500 |
610 |
610 |
|
WT (KG) RF BW |
1916 |
22 19 |
29 25 |
42 34 |
64 49 |
77 65 |
105 82 |
154 131 |
288 249 |
507 430 |
690 600 |
950 850 |
|
Size(mm) |
DN40 |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
DN350 |
DN400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L-L1(RF-BW) |
229 |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
838 |
864 |
|
L2(RTJ) |
241 |
283 |
308 |
333 |
371 |
416 |
460 |
575 |
638 |
727 |
854 |
879 |
|
H(OPEN) |
360 |
398 |
436 |
462 |
560 |
620 |
694 |
982 |
1130 |
1049 |
1556 |
1700 |
|
D |
200 |
200 |
250 |
250 |
350 |
400 |
450 |
560 |
860 |
610 |
610 |
610 |
|
WT (KG) RF BW |
26 21 |
31 26 |
43 38 |
57 44 |
86 68 |
130 110 |
168 138 |
280 228 |
385 329 |
724 618 |
1500 1350 |
2200 2000 |
