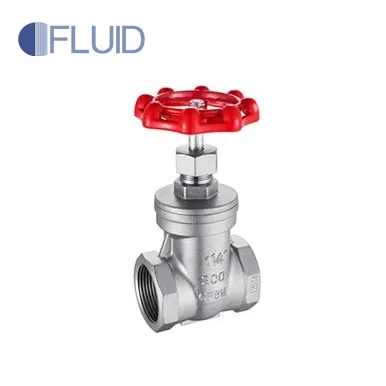

Female Threaded Gate Valve
  • Female Threaded Gate ValveFemale Threaded Gate Valve

Female Threaded Gate Valve

Overview of CENTROFLOW made Female Threaded Gate Valve is a valve that fully opened and closed, designed in accordance with ASME B16.34/API 602 standard for low pressure application. The threaded gate valve consists of a closure element, called a disc which can be operated by lifting up or lifting down, using it to permit and stop the fluids flow. It has a female thread NPT on both ends. If find it interested in, contact us for more details...

Send Inquiry    PDF DownLoad

Product Description

CENTROFLOW Maufactured Female Threaded Gate Valve used to be with a wheel shape handle and metal to metal seated. Solid Wedge, OS&Y, None Rising Stem, Bolted, Threaded Bonnet, Stainless Steel Gate Valves, Full Bore (FB), Reduced Bore (RB), NPS 1/2 to NPS2. Material available stainless steel 304, 316, 304L 316L for corrosion resistance, hight temperature and low friction of sealing surface, simple operation,long life.

CENTRO Female Threaded Gate Valve Features

sizes :1/2″ – 4″
Body Material:ASTM A351 Gr. CF8M/CF8
Seat:Stainless steel+ Stellite
Working Pressure:200PSI
Testing Method:API598
End Connections:ANSI B 1.20.1 (NPT) DIN 259/DIN 2999
Design:ANSI B16.34


Material and Main Parts

No

Panrt Name

Material

 1

Body

A351 CF8/CF8M

2

Wedge

A351 CF8/CF8M

3

Stem

SS316

4

Stem Holder

SS316

5

Gasket

SS304

6

Bonnet

A351 CF8/CF8M

7

Packing

PTFE

8

Ring

SS316

9

Cap

A351 CF8/CF8M

10

Gasket

SS304

11

Nut

SS304

12

Handwheel

ZL101

Dimensions

SIZE

D

L

H

W

DN6 1/4”

10

42

98

65

DN10 3/6”

12

42

98

65

DN15 1/2”

14

53

98

65

DN20 3/4”

19

57

98

72

DN25 1”

24

64

105

77

DN32 1-1/4”

30

72

125

97

DN40-1/2”

38

76

137

97

DN50

47

88

155

107
